Aluminum Composite Panels
Limitless architecture, factory-flat.
Two thin aluminum skins bonded to a lightweight core (PE or fire-rated mineral). Ultra-flat, large format, and roughly 70% lighter than solid aluminum of the same thickness — fabricated, folded and perforated into virtually any shape.
Technical Specifications
Total Thickness4 mm (PE / FR core)
Skin Thickness0.5 mm each face
Weight5.56 kg/m² (PE) · 7.56 kg/m² (FR)
Panel Width1000 – 1500 mm
Panel Length900 – 1650 mm
Service Temperature−50 °C to +80 °C
Fire RatingFR core: CAN/ULC-S134, NFPA 285
Coating SystemPVDF / FEVE high-performance
Typical Applications
- High-rise residential & office towers
- Mid-rise mixed-use developments
- Retail strips & big-box renovations
- Parking garage screening
- Soffits
- Signage & branding elements
- Interior feature walls
- Facade refresh & renovation
Available Finishes

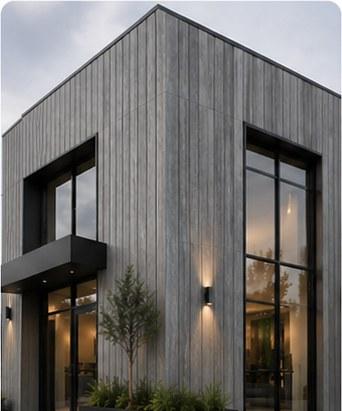

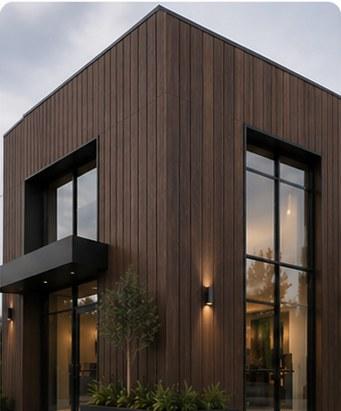

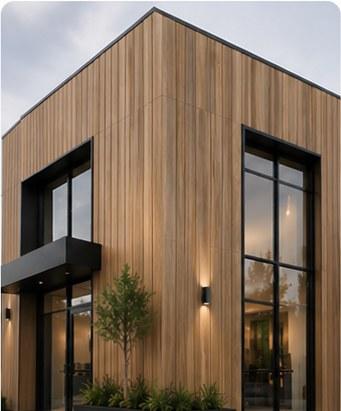

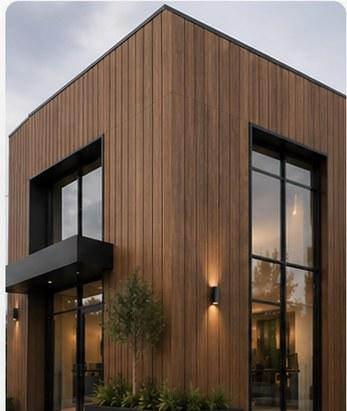

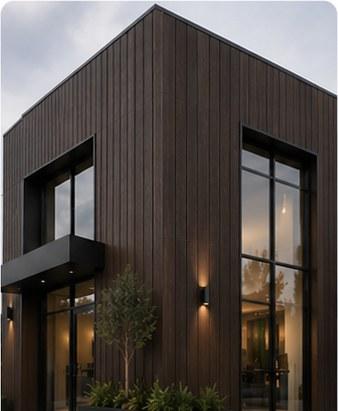

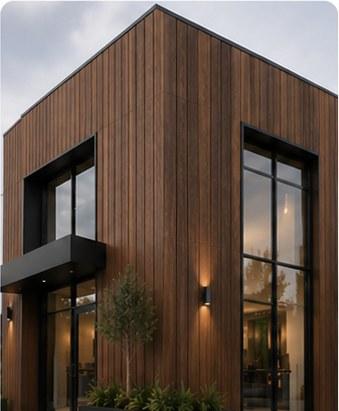

Renders illustrate each finish on the same building under identical lighting — actual tone may vary slightly with substrate, scale, and ambient light.
